Patch Atenna Design

A Hexa-Band Quad-Circular-Polarization Slotted Patch Antenna for 5G, GPS, WLAN, LTE, and Radio Navigation Applications

In this project, we choose a paper that proposes a design of a hex-band (6) micro strip slot antenna. Which means that the antenna is designed to excite 6 modes TM100 , TM110 , TM210 , and TM220 at 0.7, 1.17, 1.57, and 2.4 GHz, respectively, while the other three are hybrid modes EH1 , EH3 , and EH4 excited to resonate at 1.3 GHz and a contiguous band 2.7-3.6 GHz. For us to validate this paper we need to show each of the modes being excited.

Our design and 3D model

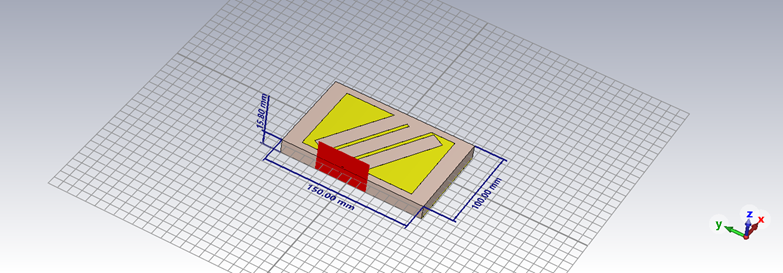

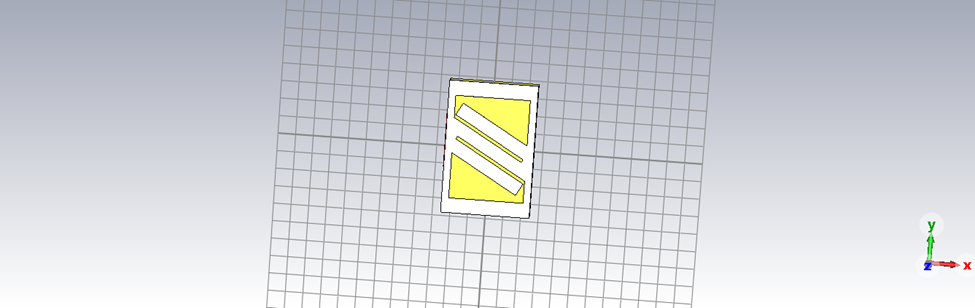

3D Model of the Patch Antenna Design

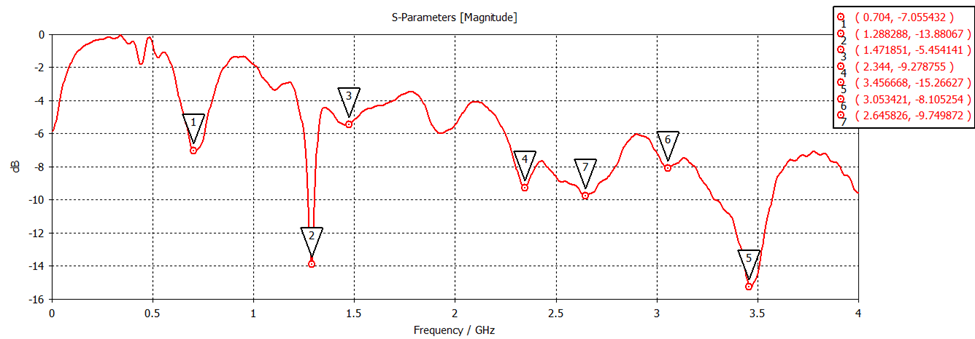

Excitation Pattern for the Patch Antenna

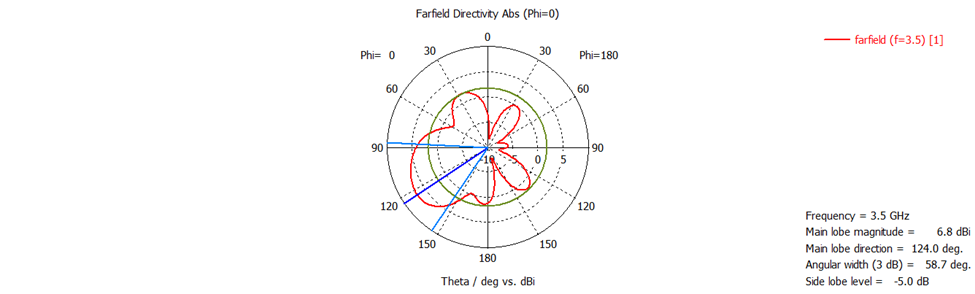

Far-Field Radiation Pattern of the Antenna

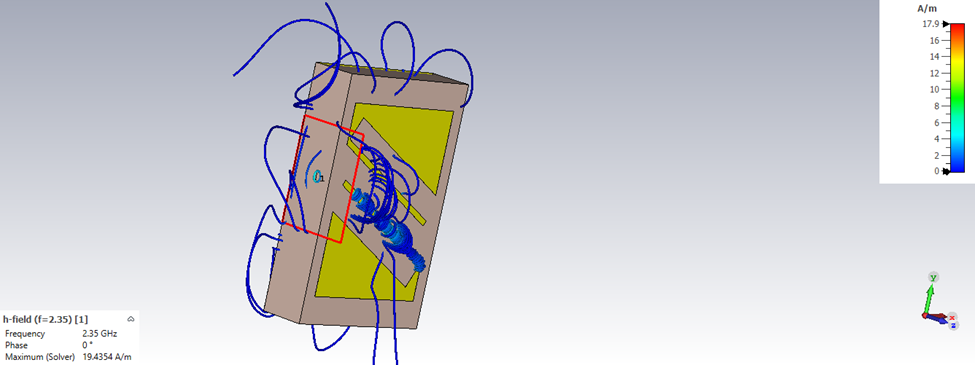

Magnetic Field Distribution of the Patch Antenna

More about this project, Drive Link - Hexa-Band Quad-Circular-Polarization Slotted Patch Antenna Report
