LoRa Python Receiver & TinyGS Ground Station

A complete software LoRa ground station built during Google Summer of Code 2026 with LibreCube. It combines two pure-Python libraries into a single reception chain: softlora, a LoRa physical-layer decoder, and tinygs, an MQTT-connected ground station that reports decoded packets to the TinyGS network.

SoftLoRa — the LoRa Python Receiver

SoftLoRa is a pure-Python implementation of the LoRa physical layer, including. It depends only on numpy and scipy.

from softlora import LoRaDecoder

decoder = LoRaDecoder(sf=10, bw=125_000, fs=125_000, fc=437e6)

for packet in decoder.decode_file("recording.wav"):
    print(packet.payload_text, packet.crc_valid)

The decoder was built for satellite downlinks, where signals are weak and Doppler-shifted. Synchronization follows the low-complexity 3-stage algorithm of Xhonneux et al. (2021), which estimates the Carrier Frequency Offset (CFO) and Symbol Timing Offset (STO) by exploiting the known chirp structure of the LoRa preamble.

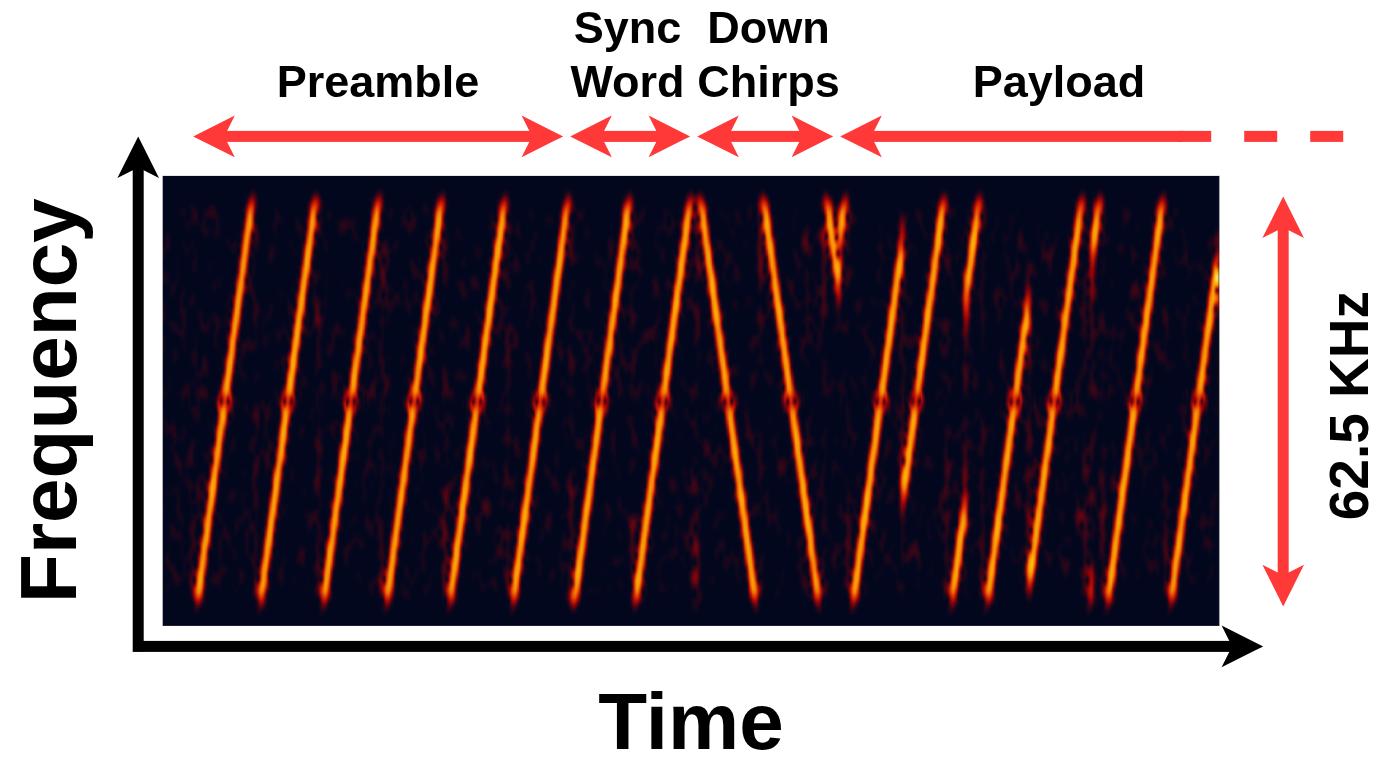

A real LoRa packet received from the Polytech Universe-3 (PU-3) satellite (SF8, 62.5 kHz bandwidth). The preamble, sync word, SFD, header, payload, and CRC regions are all visible. Recording courtesy of IE6ISP.

Key capabilities:

Recordings and live streams — decodes .wav, .cfile, .dat, and .bin files, as well as streaming IQ chunks as they arrive from an SDR.
Spreading factors 7–12 — configurable bandwidth, sample rate, and center frequency.
Packet metadata — each Packet exposes the payload bytes, UTF-8 text, CRC validity, and an SNR estimate, so you can filter for crc_valid packets only.
Chase decoding — rescues weak packets by retrying marginal symbol decisions.

Performance — AWGN SNR Sweep

The receiver is validated with an end-to-end AWGN Monte Carlo testbench: a clean LoRa packet is generated with the gr-lora_sdr GNU Radio TX chain, then the same noisy draws are decoded, so only the sync + decode path is measured. Packet-error-rate curves sweep spreading factors 7 through 12.

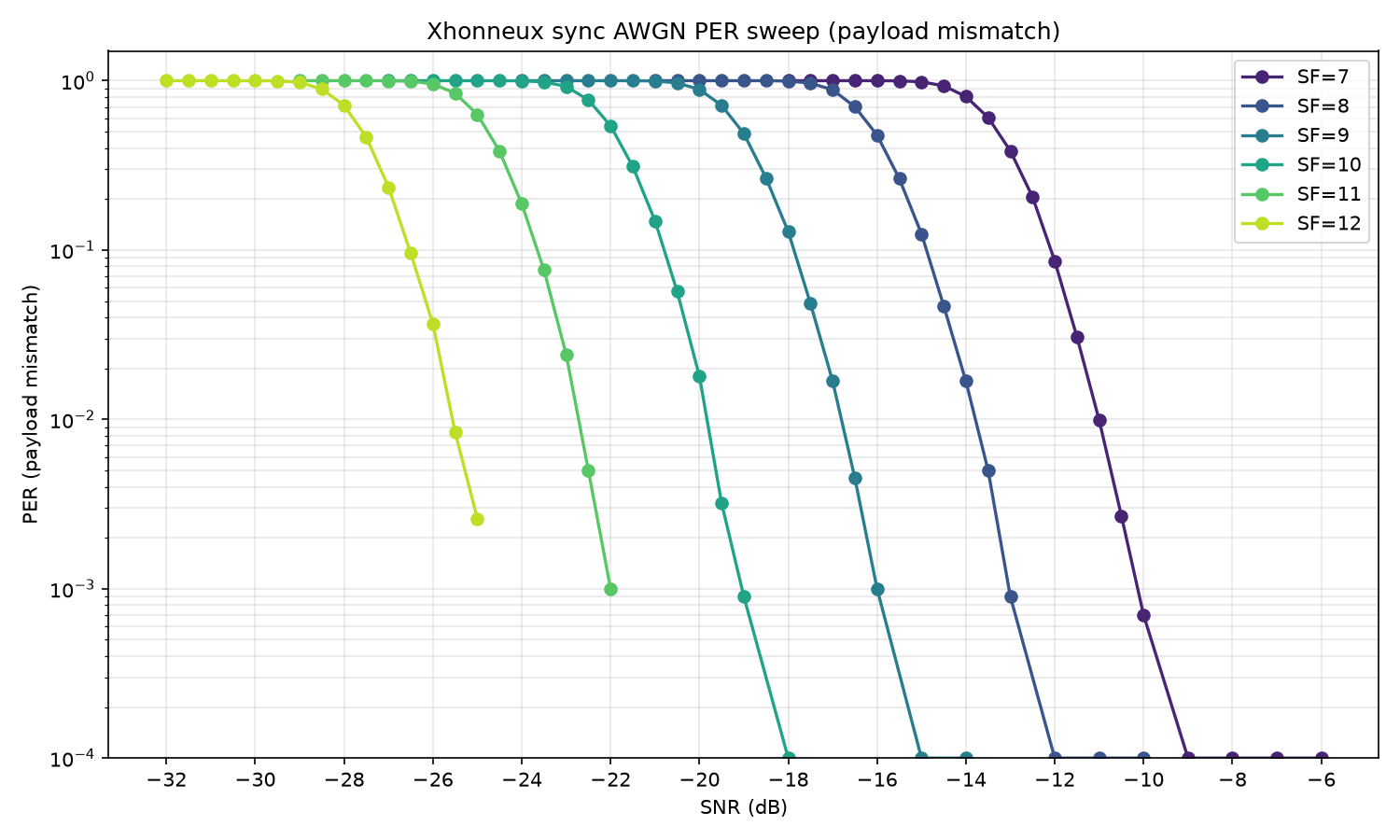

PER vs SNR waterfall for SF7–12 (BW 125 kHz, CR 4/5, CRC on). Each spreading-factor step adds roughly 4 dB of processing gain.

Generating Packets with GNU Radio

Packets used for round-trip testing are produced by a gr-lora_sdr TX flowgraph, lora_TX.grc. A message strobe pushes a payload through the LoRa transmit chain and writes the resulting complex IQ to a .bin file.

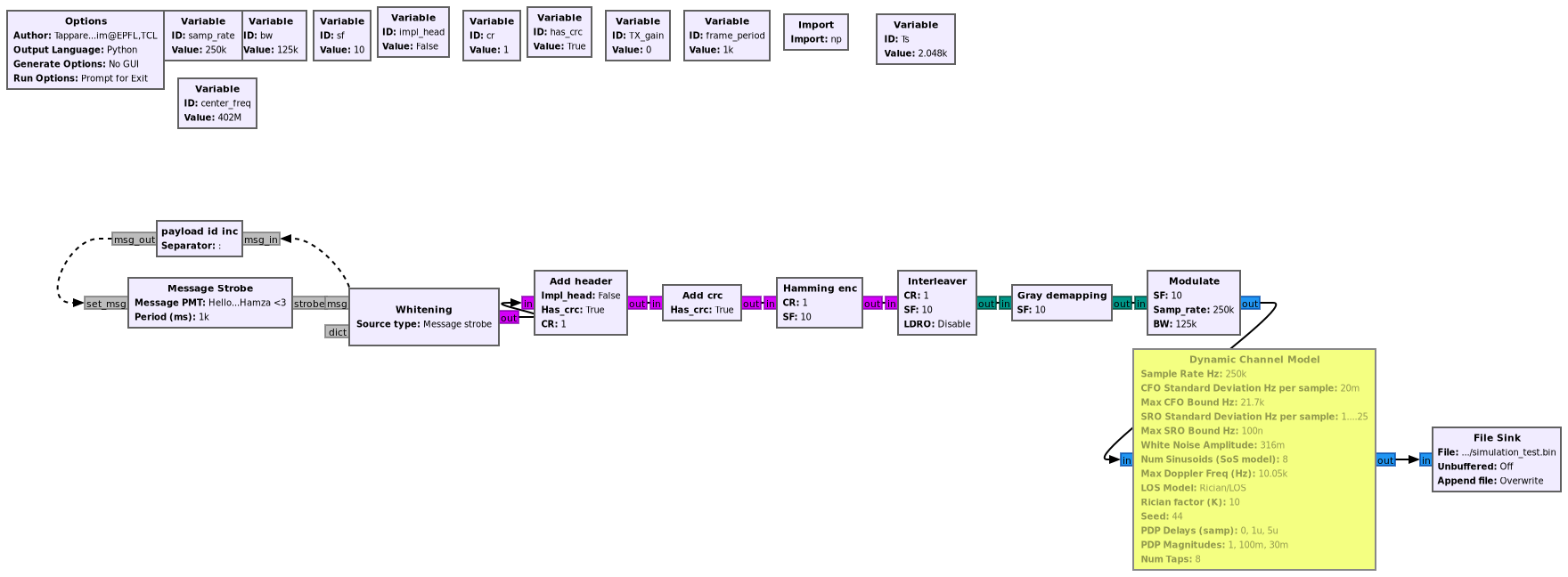

The gr-lora_sdr TX flowgraph opened in GNU Radio Companion — SF10, BW 125 kHz, 250 kHz sample rate.

TinyGS — the Ground Station

TinyGS is a Python ground station for the TinyGS satellite network, an unofficial reimplementation of the ESP32 TinyGS firmware. It handles the MQTT-TLS connection to mqtt.tinygs.com, receives satellite assignments, and publishes decoded packets to the server.

pip install tinygs            # the station library + softlora decoder
pip install 'tinygs[sdr]'     # the RTL-SDR Python backend

Running a station is three commands:

tinygs-create    # answer some questions once -> station.json
tinygs-run       # go live: connect, receive, report
tinygs-stop      # go offline

The station is radio-agnostic: RtlSdrRadio is just an IQ source plus a decoder, so supporting a HackRF, a ZMQ stream, or a recorded file only means swapping the source. A simulator is included, so the whole pipeline can be exercised without hardware.

How They Connect

softlora ships as a dependency of tinygs. The station library supplies the IQ samples from the SDR; softlora turns those samples into packets; and the station library publishes the valid payloads back to the TinyGS network. Together they form a single, testable software ground station that runs on any Linux PC attached to an SDR and a band-tuned antenna.

Resources

Code & Documentation

python-softlora — the LoRa PHY decoder (PyPI)
python-tinygs — the ground station (PyPI)

Related Writing

Technologies Used

Python 3.9+
NumPy / SciPy
SoapySDR + RTL-SDR
MQTT-TLS

Developed as a Google Summer of Code 2026 project with LibreCube, an open source initiative for space and earth exploration systems.
